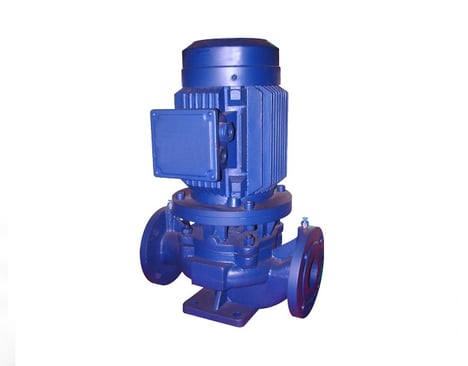

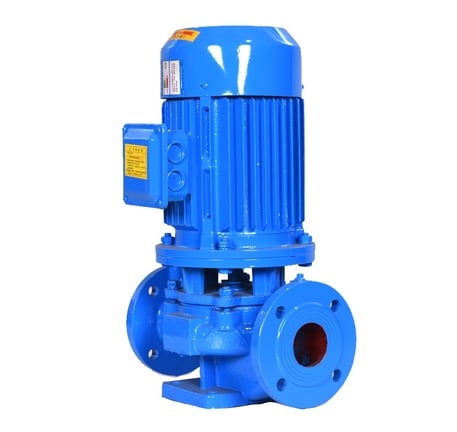

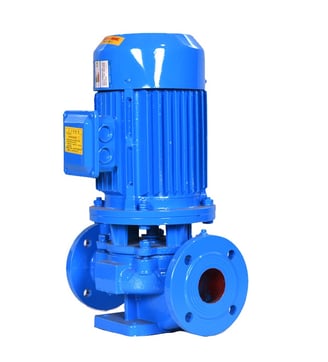

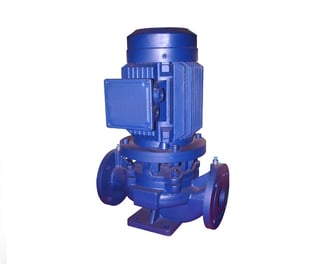

Vertical Inline Pump (ISG series)

Main Performance Range

• Flow Rate: 10 m³/h - 520 m³/h

• Delivery Head: 5m - 250m

• Speed: 2980/3560/1480/1760rpm

• Outlet Dia.: 50mm - 200mm

• Liquid Temp.: 0℃ - 120℃

• Working Pressure: ≤ 3.0Mpa

• Solid Particle: ≤ 80mg/L

• Key Words: Vertical inline pump, boosting pump, circulation pump, vertical centrifugal pump

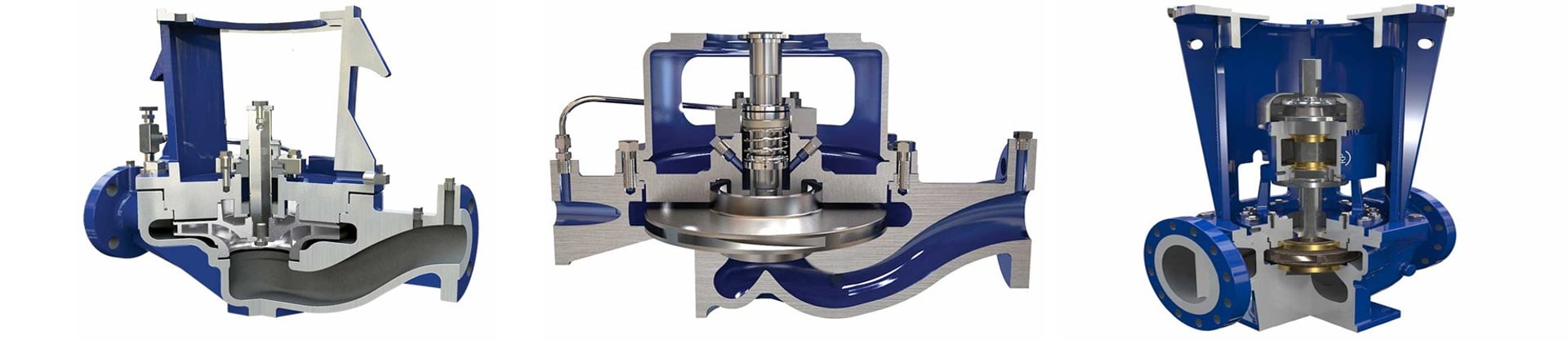

The ISG, IRG, IHG, IYG series single stage single suction vertical inline centrifugal pumps are designed according to different working conditions. The excellent hydraulic model makes the pump easy intallation & maintenance, the compact designed pump save more space in the pump house.

The pump is vertical type with compact design, its inlet/outlet uaually share the same diameter.

It is widely used in residential water supply, industrial water supply, it mainly play the role as pipeline boosting section.

Model Instruction
E.G.: ISG80-160(A.C.C...)
IS: Vertical inline pump (boosting pump)
80: Pump inlet/outlet diamter is 80mm
160: Impeller diameter is 160mm
(A.B.C....: Impeller Size Adjustment

Applications
Industrial water supply and discharge,
Food, wine, drink, drug industry,
Clean water & Hot water transferring,
Chemical liquid transferring,
Sea water desalination & transferring,
Factory & residential drink water supply,
Fibre processing industry,
Paper & pulp industry Sugar industry,
Air conditioning, enviromental protection engineering.
Power station water circulation,
Irrigation and rawater treatment.
