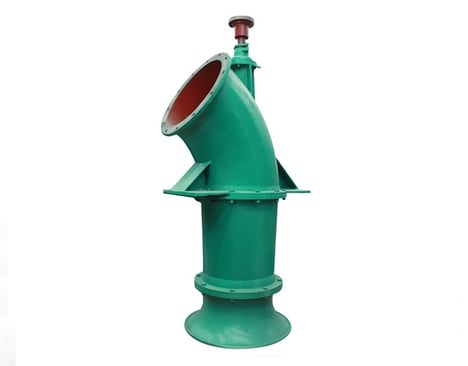

Vertical Axia Flow Pump (ZLB series)

Main Performance Range

• Flow Rate: 450 m³/h - 25000 m³/h

• Delivery Head: 2m - 8m

• Speed: 980/740/590rpm

• Outlet Dia.: 350mm - 1600mm

• Liquid Temp.: 0℃ - 80℃

• Working Pressure: ≤ 3.0Mpa

• Solid Particle: ≤ 80mg/L

• Key Words: Vertical axial flow pump, propeller pump, VTP pump, vertical discharge pump, irrigation pump, drainage pump

ZLB series is vertical axial flow pump designed for water supply and drainage applications in industrial, municipal and agricultural irrigation projects including metallurgy, mining, chemical, power plants and water level regulation in shipyard docks etc.

The vertical axial pump have the advantage of big flow-low rate, easy maintenance and endurable. It is widely used in irrigation, drainage, flood discharge, rain-water handling, etc.

Model Instruction
E.G.: 700ZLB-10
ZLB: Vertical axial flow pump (propeller pump)
700: Pump outlet diamter is 400mm
10: Rate delivery head is 10m

Applications
Irrigation and rawater treatment.
Industrial water supply and discharge,
Sewage disposal,
Clean water & Hot water transferring,
Rain-water handling,
Fish-farm circulation.
