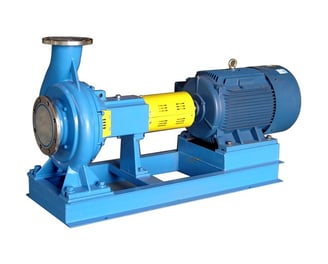

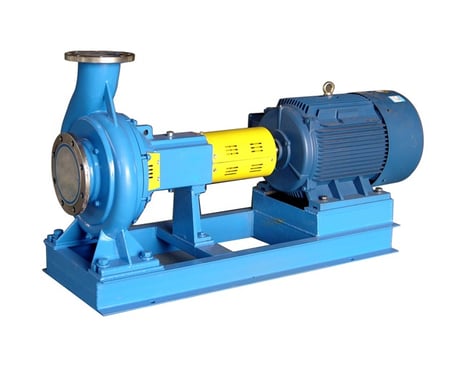

End Suction Pump (IH series)

Main Performance Range

Flow Rate: 5 m³/h - 480 m³/h
Delivery Head: 5m - 125m
Speed: 2980/3560/1480/1760rpm
Outlet Dia.: 32mm - 350mm
Liquid Temp.: 0℃ - 120℃
Working Pressure: ≤ 2.0Mpa
Solid Particle: ≤ 80mg/L
Key Words: End suction pump, back pull-out pump, boosting pump, industrial pump, processing pump, process pump

The IH series single stage end suction centrifugal pump are widely used to transfer clean liquid, sewage water, drink water, chemical liquid, hot liquid by selecting different flow passage parts.

The pump is constructed with single impeller, horizontal installed, radial split volute casing with foot support and single entry impeller, and its "back pull-out " design makes the pump could be easy disassembly while maintenance and replacing the rotor parts.

"Back pull-out" design meets refineries' requirements for rapid dismantling and re-assembly and is therefore often used for process pumps. The main advantage of the "back pull-out" design is that the rotating parts including the bearings and shaft seals could be pulled out of the pump casing without removing the driven motor and pipeline (the motor should be decoupled and the inlet/outlet flanges be unscrewed to avoid possible damage).

Model Instruction
E.G.: IH125-100-315(A.C.C...)
IH: End suction centrifugal pump (back pull-out pump)
125: Pump inlet diamter is 125mm
100: Pump outlet diameter is 100mm
315: Impeller diameter is 315mm
(A.B.C....: Impeller Size Adjustment

Applications
Industrial water supply and discharge,
Food, wine, drink, drug industry,
Clean water & Hot water transferring,
Chemical liquid transferring,
Sea water desalination & transferring,
Factory & residential drink water supply,
Fibre processing industry,
Paper & pulp industry Sugar industry,
Air conditioning, enviromental protection engineering.
Power station water circulation,
Irrigation and rawater treatment.
