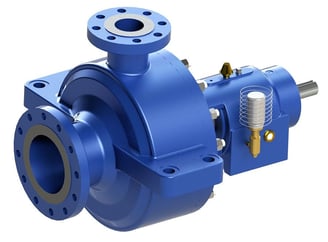

End Suction Pump (ZA series)

Main Performance Range

Flow Rate: 9 m³/h - 2600 m³/h
Delivery Head: 5m - 250m
Speed: 2980/3560/1480/1760rpm
Outlet Dia.: 25mm - 400mm
Liquid Temp.: 0℃ - 180℃ (OH2 type Max 450℃)
Working Pressure: ≤ 2.5Mpa
Solid Particle: ≤ 80mg/L
Key Words: multistage pump, high pressure pump, vertical inline pump, vertical multsitage pump

The ZA series single stage end suction overhung centrifugal pump are widely used to transfer petrochemical liquid, Chemical and Oil & Gas liquid. It is designed according to API610 standards.

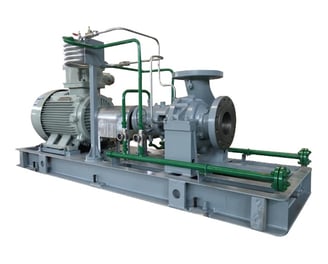

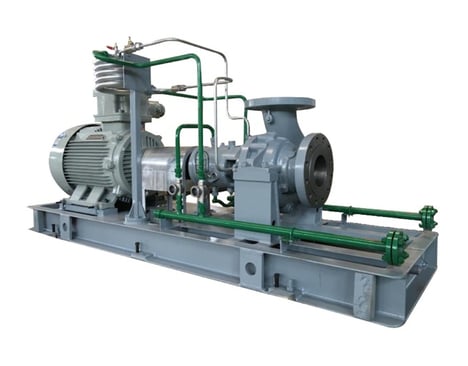

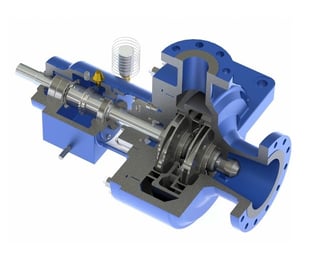

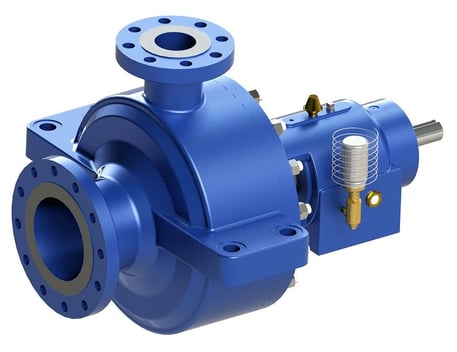

The pump is constructed with single impeller, horizontal installed, centre-line mounted, and its "back pull-out " design makes the pump could be easy disassembly while maintenance and replacing the rotor parts.

"Back pull-out" design meets refineries' requirements for rapid dismantling and re-assembly and is therefore often used for process pumps. The main advantage of the "back pull-out" design is that the rotating parts including the bearings and shaft seals could be pulled out of the pump casing without removing the driven motor and pipeline (the motor should be decoupled and the connection flange unscrewed to avoid possible damage).

Model Instruction
E.G.: ZA80-250(A.B.C.D...)
ZA: End suction centrifugal pump (OH1/OH2 type)
80: Pump inlet/outlet diamter is 80mm
250: Impeller diameter is 250mm
(A.B.C.D....: Impeller Size Adjustment

Applications
Fractionation bottoms,
Heavy gas oil, crude oil,
Polyethylene (PE) & Polypropylene (PP),
Purified tTerephthalic acid (PTA),
Water Injection Booster,
Crude oil transfer,
Pipe line boosting,
Special refinery services,
H.F. acid service,
ulphuric acid service,
Hot oil applications,
Cryogenic duties

Material of Counstruction (API610)

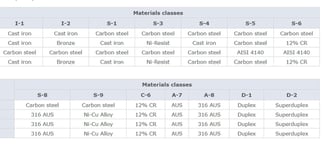

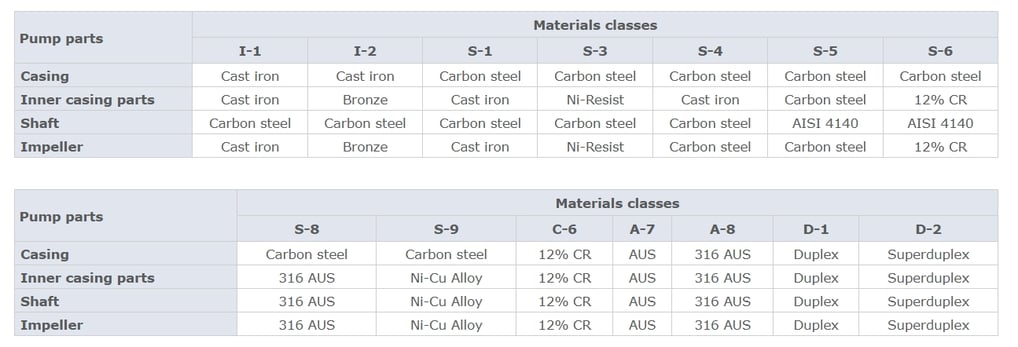

The material of pump main parts as following:
