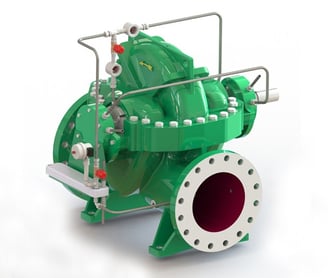

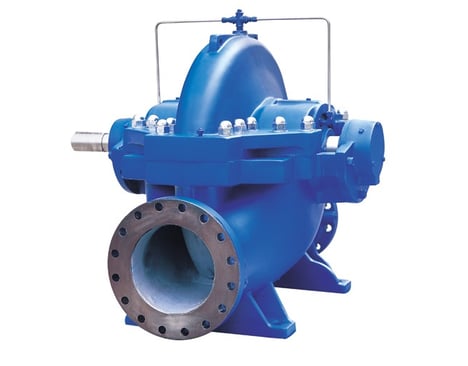

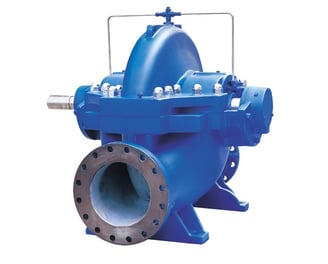

Axial Split Case Pump (Omega)

Main Performance Range

Flow Rate: 50 m³/h - 20,000 m³/h
Delivery Head: 7m - 220m
Speed: 2980/1480/980/740/590rpm
Outlet Dia.: 80mm - 1,600mm
Liquid Temp.: 0℃ - 80℃
Working Pressure: ≤ 5Mpa
Solid Particle: ≤ 80mg/L
Key Words: split case pump, split casing pump, double suction pump, double entry pump, axial split pump

The Omega series split case double suction centrifugal pump is a single impeller, double-entry centrifugal pump, which adopt KSB Omega/RDL/RDLO series hydraulic model. It have the features of wide range, high efficiency, stable performance, easy maintenance and long service life.

The axially split design allows easy removal of the top casing and access to the pump components (bearings, wear rings, impeller, and shaft seal) without disturbing the motor or pipe work. The independent bearing housing allows for ease of maintenance without removing the top casing. The double volute design reduces the radial load on the shaft, extending component life, minimizing vibration and providing quiet operation.

Model Instruction
E.G.: Omega S100-310 (A/B/C...)
Omega S: Single stage double entry split case pump (Omega/RDL/RDLO model)
100: Outlet diameter is 100mm
310: Impeller diameter is 310mm
A(B,C....): Impeller code

Applications
General industrial water supply and discharge,
Irrigation & Drainage,flood disposal,
Oil, gas & petrochemical liquid processing,
Hot water transferring, raw water intaking,
Sea water desalination & transferring,
Power station water circulation,
Factory & warehouse & residential fire fighting,
Mining water supply & drainage, Water treatment.
