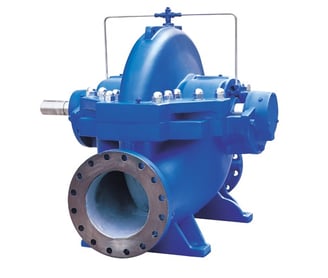

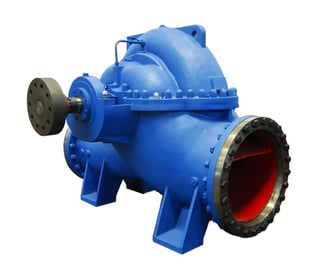

Axial Split Case Pump S-R series

Main Performance Range

Flow Rate: 500 m³/h - 5,400 m³/h
Delivery Head: 60m - 220m
Speed: 2980/1480/980/740rpm
Outlet Dia.: 200mm - 500mm
Liquid Temp.: 0℃ - 120℃
Working Pressure: ≤ 5Mpa
Solid Particle: ≤ 80mg/L
Key Words: split case pump, split casing pump, double suction pump, double entry pump, axial split pump

The S-R series split case double suction centrifugal pump is a single impeller, double-entry centrifugal pump, which adopt KSB Omega/RDL/RDLO series hydraulic model. It have the features of wide range, high efficiency, stable performance, easy maintenance and long service life.

It is specially designed for transferring circulation water in heat network of thermal power plant and similar circumstance. The pump for municipal heat network will drive the water flow like a circle in the network. Circulation water which flow back from the municipal heat network will be boosted by the pump and heated by the heater, and then transferred return to the municipal heat network.

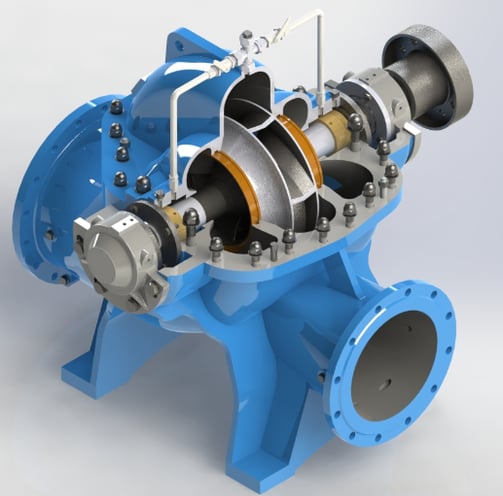

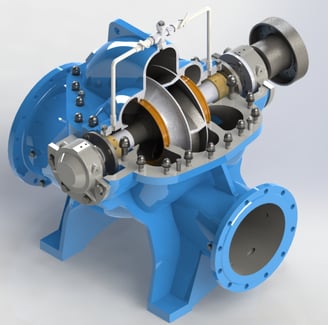

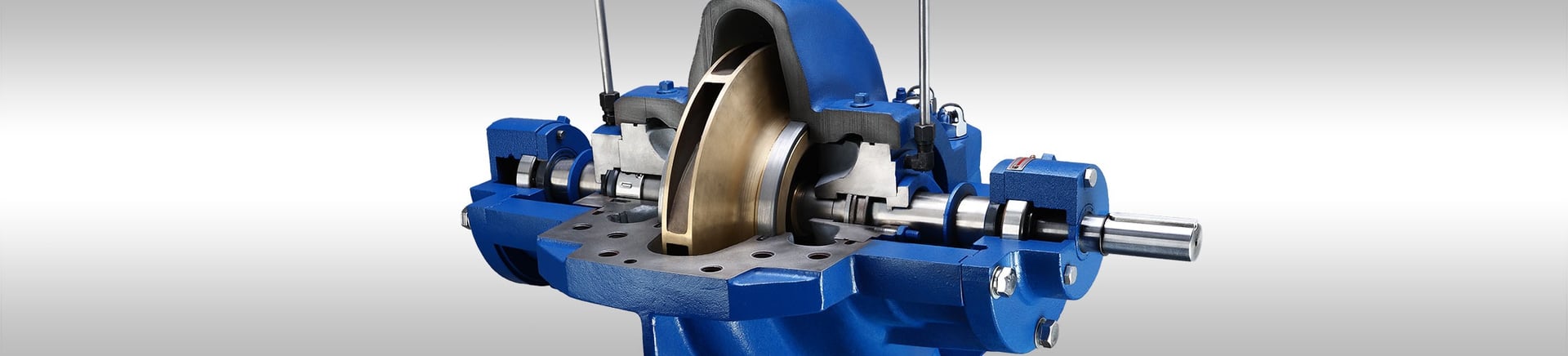

The axially split design allows easy removal of the top casing and access to the pump components (bearings, wear rings, impeller, and shaft seal) without disturbing the motor or pipe work. The independent bearing housing allows for ease of maintenance without removing the top casing. The double volute design reduces the radial load on the shaft, extending component life, minimizing vibration and providing quiet operation.

Model Instruction
E.G.: 350S26 (A/B/C...)
S: Single stage double entry split case pump (Omega/RDL/RDLO model)
350: Inlet diameter is 350mm
26: Delievery head is 26mm
A(B,C....): Impeller code

Applications
General industrial water supply and discharge,
Heating network boosting,
Power station water circulation,
Hot water transferring.
